12-Inch End Plate Bolt Together Truss

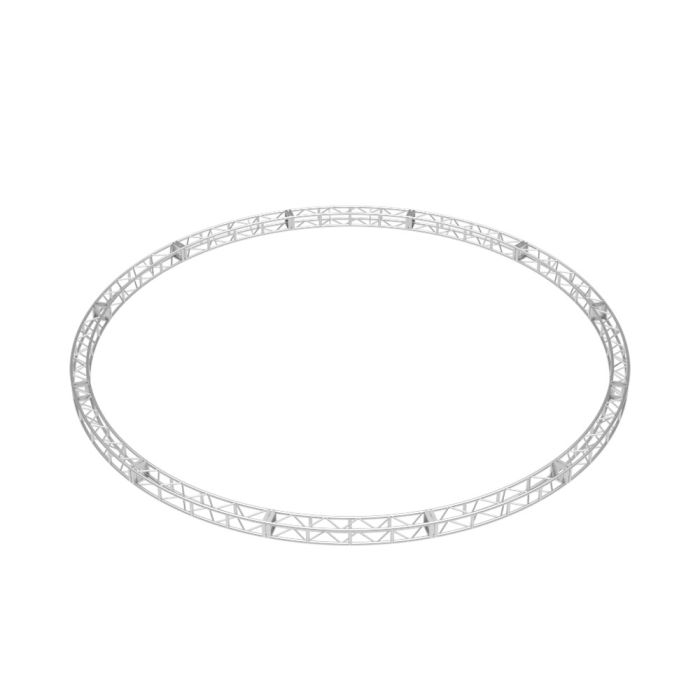

Outside Diameter: 30ft

Inside Diameter: 28ft

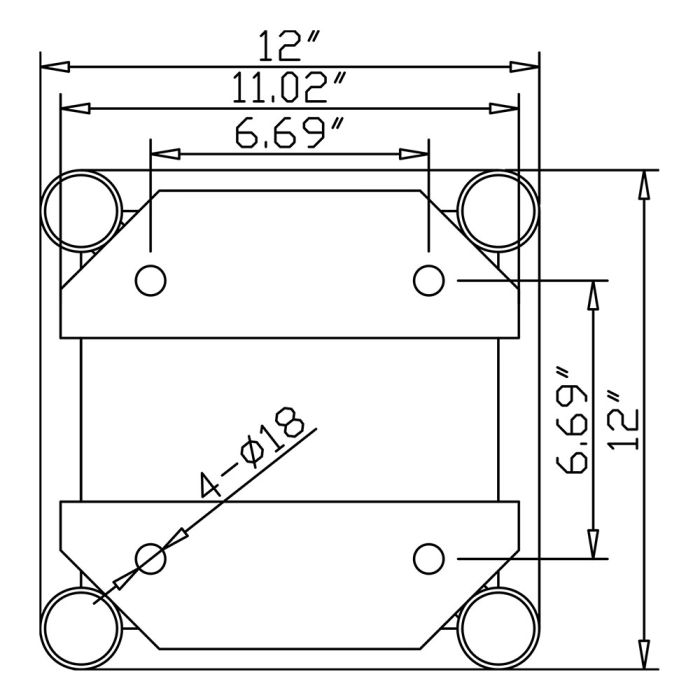

12″ Overall Truss Width
30 Degree Arcs

1.96″ 50mm Outer Diameter Tubing
0.11″ 3mm Wall Thickness

0.98″ 25mm Diagonal Bracing
0.08″ 2mm Wall Thickness

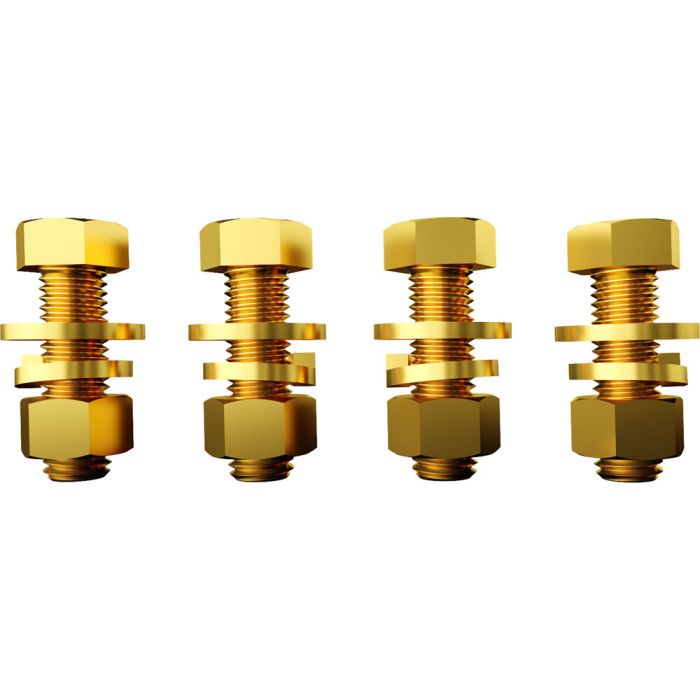

5/8" Grade 8 Bolts, Nuts and Washer Included

Kit Components: 12x FN305SA-30ARC

Unit Weight: 600 Lbs.
