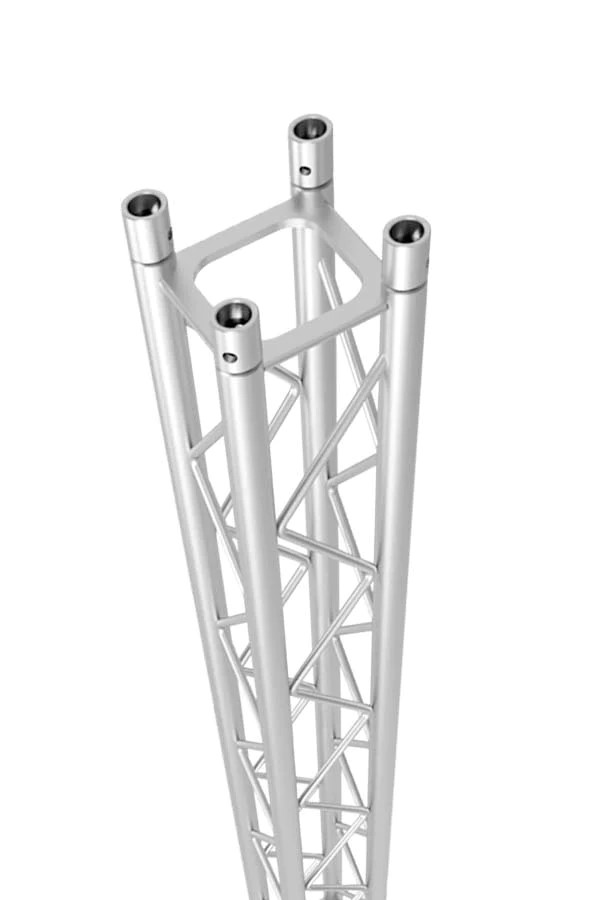

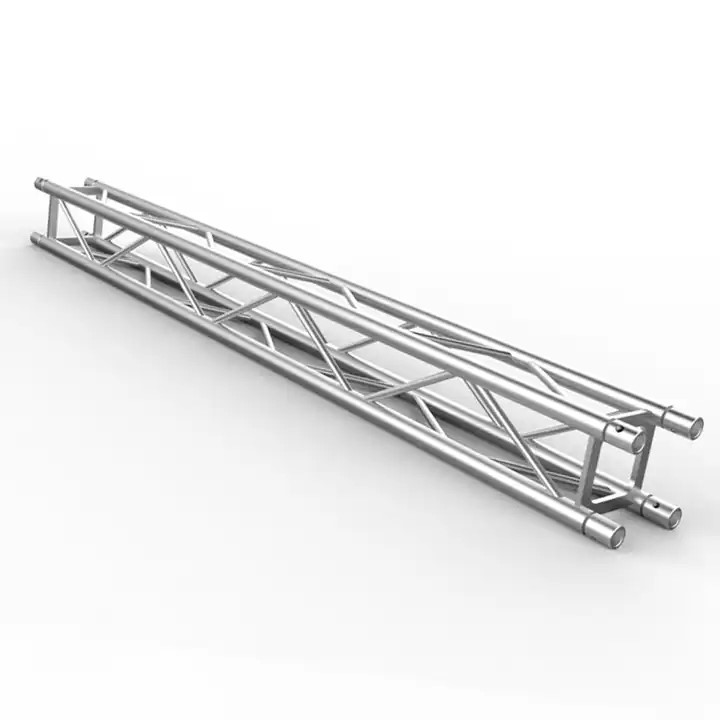

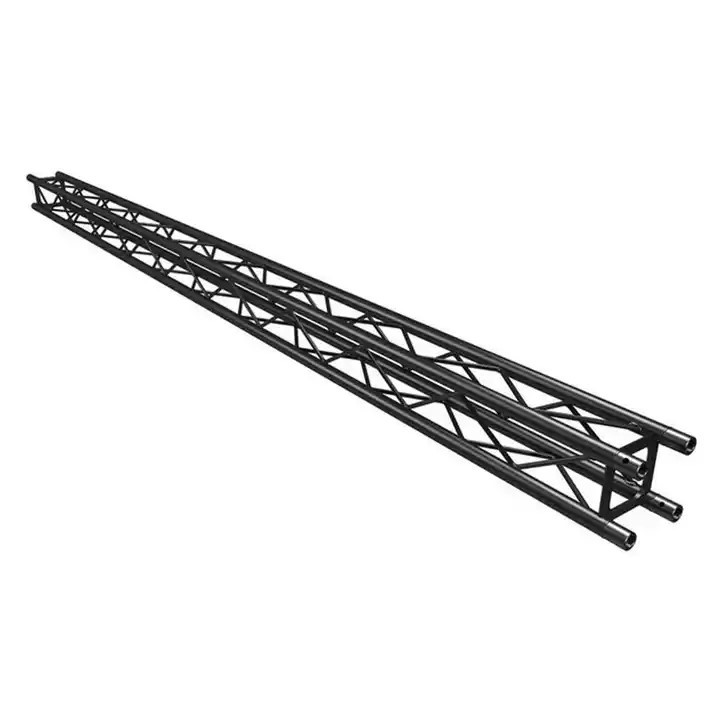

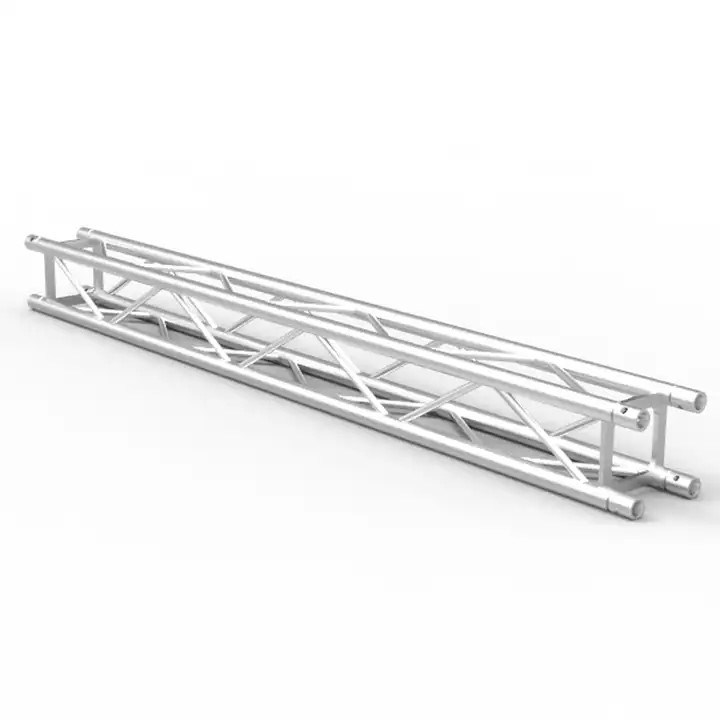

EXTERNAL DIMENSION: 100mm;

TUBES: 20x2mm;

BRACES: 6mm;

MATERIAL: EN-AW 6082 T6

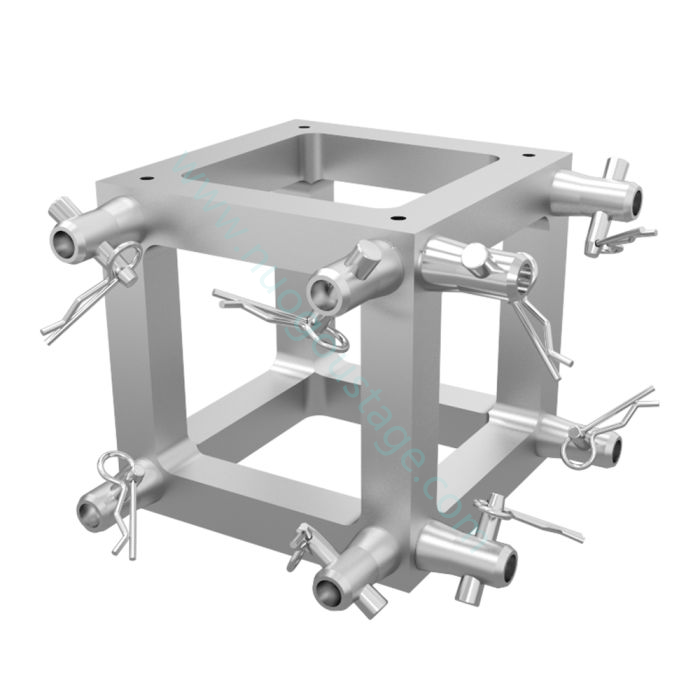

• connecting hardware is included with each truss.

MODEL       LENGTH      UNIT WEIGHT

G-F14-0.5      1.64ft/0.5m       3lbs/1.36kg

G-F14-0.1     3.28ft/1m         5lbs/2.27kg

G-F14-1.5     4.92ft/1.5m       7lbs/3.18kg

G-F14-2.0    16.56ft/2m        9lbs/4.09kg

G-F14-2.5     8.20ft/2.5m      11lbs/4.99kg

G-F14-3       9.84ft/3m          13lbs/5.9kg
